WIFI Extender Wireless Router

Huawei Router W5102 Specifications

Device Type : Wireless Router, Smart Router, Home Router
QoS feature supports per-device speed limit
WPS function support
Antenna gain 5dBi
Operating temperature 0 ° C ~ 40 ° C
Wired specification
Data transmission rate of 100Mbps
Network protocol TCP/IP, PPPoE, DHCP, ICMP, NAT protocol
Network port transmission protocol IEEE802.3u (100 Base-TX) / IEEE802.3 (10 Base-T)
User management support
WiFi mode supports three modes: wall penetration, standard, and sleep.
Guest WiFi support
WiFi timing off support
Zhilian network double-route H-key one-key network, expand Wi-Fi, meet the needs of large-sized and villa-level WiFi coverage
Routing features support Huawei HiLink protocol, PPPoE/DHCP/static IP/MAC address clone WAN access mode, Wi-Fi trunk, Wi-Fi timer switch, guest Wi-Fi, networked device management, MAC address filtering, parental control, VPN transparent transmission, virtual server and other functions
QoS feature supports device speed limit: limit the bandwidth of the device through the MAC address.
Security features support anti-brute force cracking, automatic shield cracker; support WPA-PSK/WPA2-PSK Wi-Fi encryption; support firewall, DMZ, PAP/CHAP adaptive authentication mode, DoS attack protection
Functional characteristics
Featured features support IPv6/IPv4
Hardware specification
Power specification 12V DC, 0.5A
Machine power consumption < 6 W

What is “true dual frequency”?

1.Dual frequency integration, support 5G optimization, faster Internet speed;
2.Support the LDPC weak signal correction algorithm, the partition is also relatively fast;
3. Adopting the second-generation AC multi-device technique, the number of people is still fast;
4. Using 28nm 1GHz main frequency chip, stable and fast;

HUAWEI ROUTER W5102 1167Mbps

True dual frequency is fast, support 5G signal intelligent priority selection Support IPv6
Models involved: huawei router Q2 PRO series/huawei router Q2 series/huawei router A1 / huawei router WS5200 series/huawei router WS5102 / huawei router WS5100

What is “true dual frequency”?

1.Dual frequency integration, support 5G optimization, faster Internet speed;
2.Support the LDPC weak signal correction algorithm, the partition is also relatively fast;
3. Adopting the second-generation AC multi-device technique, the number of people is still fast;
4. Using 28nm 1GHz main frequency chip, stable and fast;

True dual frequency, just faster

1167 dual frequency integration / LDPC through-wall technology / 11AC MU-MIMO multi-device transceiver / 28nm 1GHz main chip

5G preferred, dual frequency integration, automatic switching

5G signal fast, 2.4G through the wall, two bands in one, combined display, automatic optimization, avoid interference, close to the automatic connection to 5G, far away from the wall automatically connected to 2.4g

****Terminal devices need to support dual-frequency WIFI

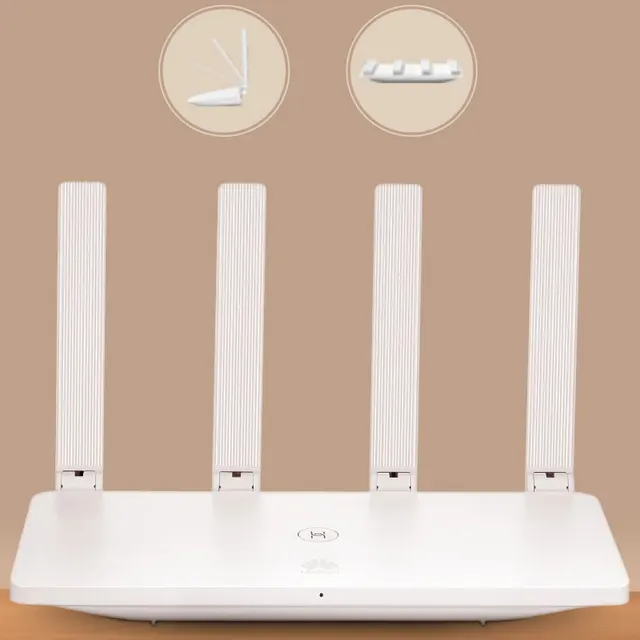

Four phosphor copper high gain antennas

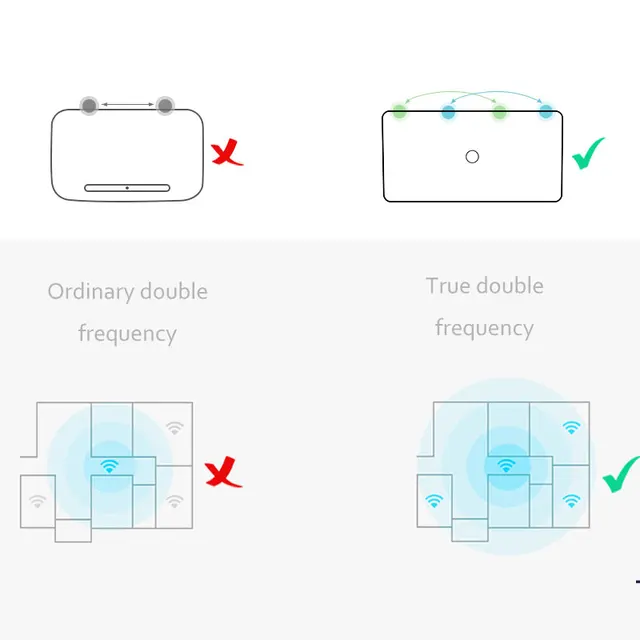

Two 2.4ghz and two 5GHz omnidirectional phosphor copper high-gain antennas are externally installed to achieve greater isolation between antennas of the same frequency.Effectively reduce the interference with the same frequency, get better transmission performance

Support LDPC error correction algorithm, weak signal through the wall technology

When the dual-frequency signal is greatly attenuated through the wall, it is easy to cause data loss. Automatic error correction is carried out to avoid repeated transmission, which greatly improves the transmission efficiency.

New generation 28 nm 1GHz CPU

The router processor unit using 28 nanometer technology, with a CPU frequency of 1GHz, can integrate 802.11ac 2*2 WIFI and DDR2 memory

***The test scenario is huawei lab. By comparing the two chip technologies, it can achieve higher main frequency at the same power consumption and lower power consumption at the same computing amount.

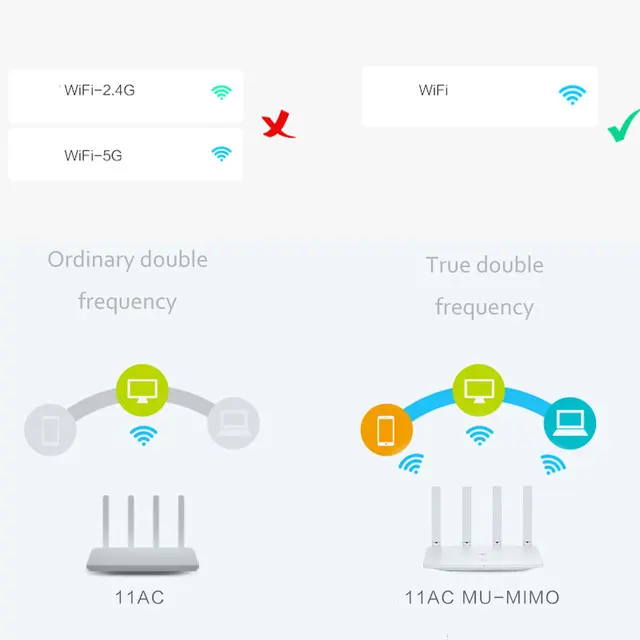

Second generation AC technology, support mu-mimo multi-device transceiver

After multiple devices are connected to the router, data can be sent to multiple devices at the same time, taking into account the balance of information transmission between multiple devices. Compared with the first generation, the network speed is improved by 20%.

In the dual frequency era, you need to choose more stability

Easy to use, APP support multi – language operation

No computer, with mobile phone 2 steps to complete the Internet configuration
*** in general, fiber users only need 2 steps, and if PPPO dialing is involved, it needs 3 steps
1. Connect to the router WIFI and open any browser to open the configuration page.
2. Enter the name and password of WIFI to configure instant access to the Internet.

Rich intelligent products, covering the whole scene of family life

The smart products of huawei Hilink alliance come from the TOP manufacturers in the industry. At present, huawei has more than 50 core partners and has cooperated in six major fields. In the future, there will be more intelligent home appliances.
