Wireless parameter
Transmission standard 802.11 ac/a/n 2*2 & 802.11 b/g/n 2*2, MU-MIMO
Wireless rate dual frequency concurrency, 1167Mbps
Wireless band 2.4GHz & 5GHz, support 2.4G/5G dual frequency optimization
Antenna gain 5dBi
Antenna type external four high performance antennas
Software features:
Mobile App: Support Huawei Smart Life App Remote Management
WiFi mode: support through the wall, standard, sleep three modes
QoS feature: Supports device rate limiting: limits the bandwidth of the device through the MAC address.
Security features: support anti-brute force cracking, automatic shield cracker; support WPA-PSK/WPA2-PSK Wi-Fi encryption; support firewall, DMZ, DoS attack protection
Features: 5G preferred, 802.11v, IPv4/IPv6, network port blind insertion, channel timing automatic optimization, PPPoE/DHCP/static IP/MAC address clone WAN access, Wi-Fi relay, Wi-Fi timer switch, guest Wi-Fi, networked device management, MAC address filtering, child Internet protection, VPN transparent transmission, DMZ/virtual server, etc.
Hardware specifications:

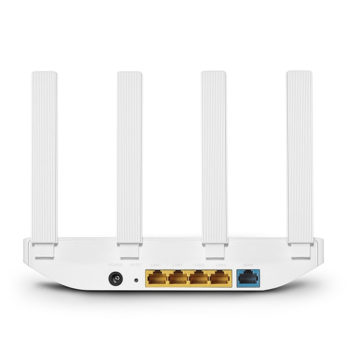

Wired LAN interface (LAN): Provides 4 10M/100M adaptive rate Ethernet interfaces
Wireless LAN Interface (WLAN): Provides a 10M/100M adaptive rate Ethernet interface
Power specification: 12V DC, 0.5A
Power plug: <6 W
Hi button: support HiLink one-key pairing, compatible with WPS
Reset button: Independent Reset reset button
Attributes:

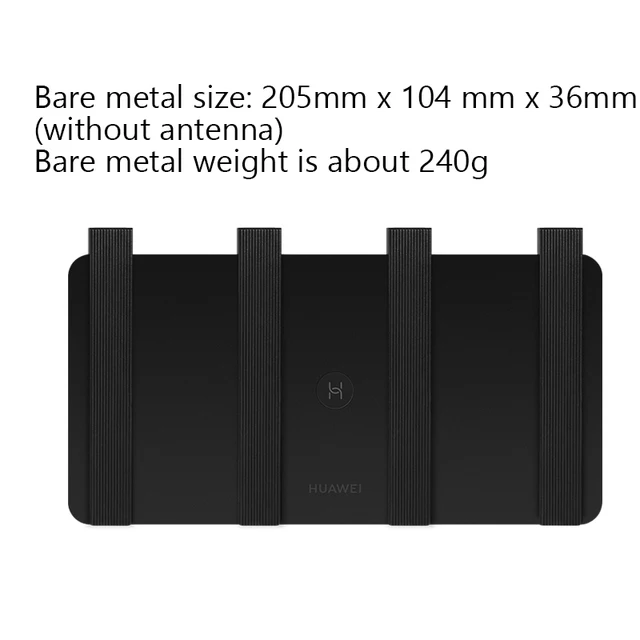

Bare metal size: 205mm x 104 mm x 36mm (without antenna)
Bare metal weight: about 240 g
Working temperature: 0 ° C ~ 40 ° C

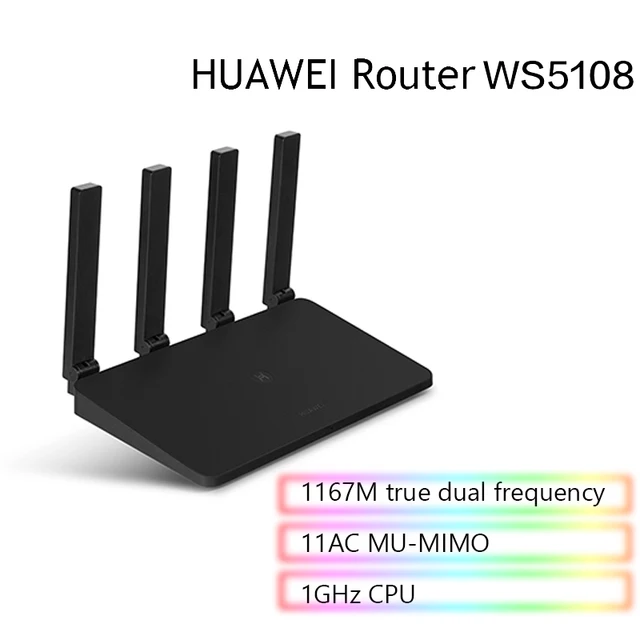

Huawei routing WS5108
1167M true dual frequency | 11AC MU-MIMO | 1GHz CPU
Huawei routing coverage is worry-free

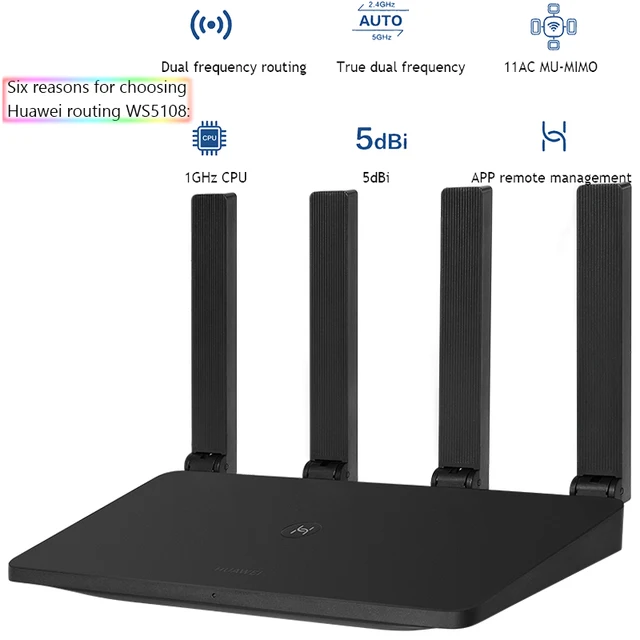

Six factors in choosing Huawei routing WS5108
1.Dual frequency routing
Concurrency rate up to 1167M
2.True dual frequency
Dual frequency, automatic optimization
3.11AC MU-MIMO
Faster when connecting multiple devices
4.1GHz CPU
Dual-band Wi-Fi performance is stronger
5.5dBi
Four wide antennas are strong through the wall and have good signal
6.APP remote management
Enjoy smart life
1167M true dual frequency, automatic switching
Dual-band Wi-Fi concurrent connection rates up to 1167M. 5GHz speed, 2.4GHz through the wall, dual frequency, automatic optimization,
It is close to the automatic 5GHz, and the remote wall is automatically connected to 2.4GHz. The remote partition wall automatically selects 2.4GHz.
*Wireless rate theoretical value (2.4GHz 300M + 5GHz 867M), the actual rate will vary depending on the environmental distance.
Data comparison:
The first generation of 11AC can only communicate with one terminal at a time.
Second generation 11AC MU-MIMO, communicating with multiple terminals at the same time
The average speed of each device is increased by 20%*
*Requires terminal support for 11AC MU-MIMO, data comparison from the theoretical comparison of two generations of technology in the laboratory environment.
A new generation of 28nm 1GHz CPU
The router processor with 28nm process is single-chip, and the CPU clock speed is 1GHz.
802.11AC 2×2 Wi-Fi, DDR2 memory. Compared to 40 nanometer chips:
Performance improvement*: ↑33,
Reduced power consumption*: ↓20%
Widening four antennas, strong through the wall, good signal
Externally 4 widened high-performance antennas, through scientific layout, between the same-frequency antennas in a limited space
Greater isolation, effectively reducing co-channel interference. The LDPC weak signal error correction algorithm allows the router to operate in an interference environment.
Easy to use, free of “brain”.

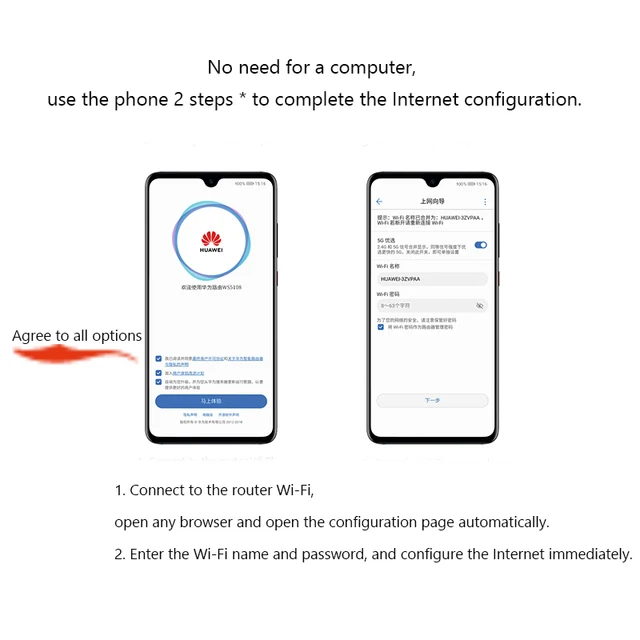

No need for a computer, use the phone 2 steps * to complete the Internet configuration.
Under normal circumstances, the fiber user only needs 2 steps. If PPPoE dialing is involved, it takes 3 steps.
1. Connect to the router Wi-Fi, open any browser and open the configuration page automatically.
2. Enter the Wi-Fi name and password, and configure the Internet immediately.
APP easily manages routers
Remote management
Easy to manage home network without being at home
2. Online time
Easily manage your kids’ online time and allocate a reasonable amount of bandwidth to each device.
3. Mall shopping
HUAWEI-enabled smart devices can be purchased directly in the app.
4. Guest Wi-Fi
Open exclusive Wi-Fi for visitors to prevent home Wi-Fi password leakage
5. Wi-Fi timer switch
Easy to set up according to sleep habits
Wi-Fi automatic switching time
6. Fun smart device
After the smart device connects to Huawei routing,
Unified management in the APP
Huawei Hil ink device is protected from confidential access. Modify Wi-Fi, automatic synchronization
When the Huawei Hilink device is connected to the Internet through the APP, password-free access is more convenient;
When the router Wi-Fi name/password is modified, the router will automatically synchronize to the connected Huawei HiLink device.
There is no need to reconnect to the network one by one.
Four security home network worry-free
Anti-fishing, anti-trojan
Baidu technology cooperation automatically identifies malicious websites
Anti-brute force crack
Prevent professional cracking software
Invasion of home network security
Guest Wi-Fi
Exclusive W-Fi for visitors
Safeguarding the owner’s network is safer
Kick out
APP Yijian kicks off the network equipment
Reduce security risks
Buyer | Real customer reviews |
---|---|
R***v |
6 Mar 2020 18:51 I guess Hood didn't check. |
U***r |

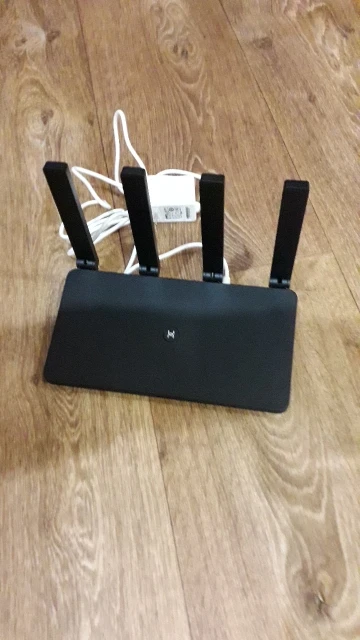

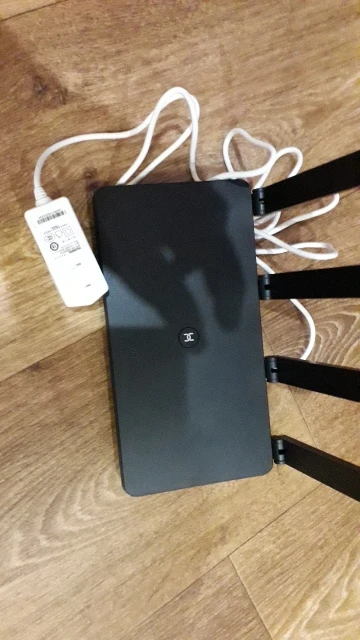

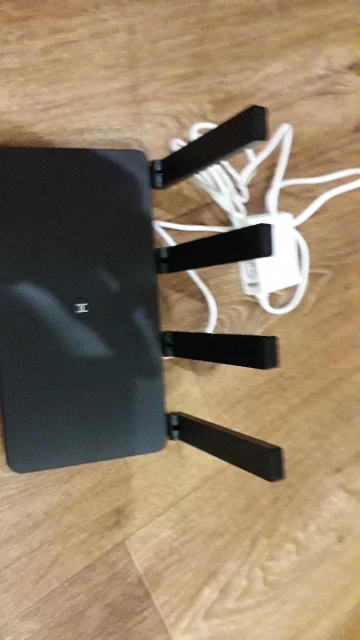

27 Feb 2020 08:28 Router Black a power supply and cable White |
Customer |
24 Feb 2020 17:25 Excellent article, coverage q offers, speed and wifi connection is excellent. Super recommended item and store. |
C***n |
17 Feb 2020 20:56 no english manual but no problem.easy to config. |
L***s |
16 Feb 2020 06:11 works good not simple to find right software ( in English and not in chinees ), but great range, outside in garden good wifi |
