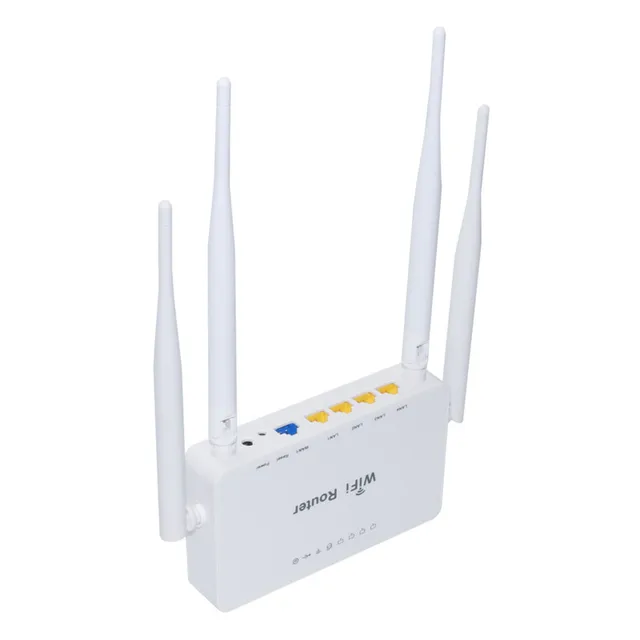

CHANEVE 802.11n 300Mbps Wireless WiFi Router MT7620N Chipset Support Padavan/Omni II/OpenWRT/OS Firmware For 3G 4G USB ModemChipset Support Wireless WiFi RouterChipset Support Wireless WiFi RouterChipset Support Wireless WiFi RouterChipset Support Wireless WiFi RouterChipset Support Wireless WiFi Router

Chipset Support Wireless WiFi Router

98% of buyers enjoyed this product!
List price:
Price:
You save:
(%)
3934
Bundle:
OS Firmware Omni II Firmware Padavan Firmware OpenWRT Firmware ZBT Firmware
Quantity:
View cart→
  • Free Worldwide Shipping
  • 100% Money Back Guarantee
  • 100% Secure Payments

Product Description

High Quality 300Mbps Wireless Router

802.11N MU-MIMO Wi-Fi Router

Fast Wireless 300Mbps

For OMNI II Firmware Support 3G/4G USB Modem (HUAWEI E3372/E8372, ZTE MF823, etc.)

And USB 3G/4G dongle, USB 3G/4G Modem (MDM9X07, MDM9X15 chipset, etc.) that support all Qualcomm chipset

Based On The MTK7620N Chipset And 8MB/FLASH+64MB/RAM Hardware Developed Routers,

Support third-party firmware:
Operating system firmware
Omni II firmware
Padavan firmware
OpenWRT firmware
ZBT firmware

CH-WR822 Independent development of a new generation of 5 300 m wireless router, adopting MTK7620N main chip solution, have a good wireless performance and wider coverage.
300Mbps to 2.4 g wireless Internet and a usb interface, meet the demand of various routing applications, has high cost performance, complete functions, superior performance, easy setting.
Hardware:
CH-WR822 the scheme of MT7620N frequency up to 600MHz, armed with a large capacity DDR2 RAM and the SPI Flash, stable performance.Provide five 10/100Mbps adaptive Ethernet interface, 300Mbps to 2.4G wireless Internet and a usb interface, meet the demand of various routing applications, with high cost performance.
Radio:
Conform to the IEEE802.11n/g/b wireless network protocol, using 2×2 MIMO (Multiple Input Multiple output) architecture, wireless transmission rate is as high as 300M, outer 2 root 5 dbi high-gain omni-directional antenna, two auxiliary antenna, with good wireless performance and wider coverage.
Software:

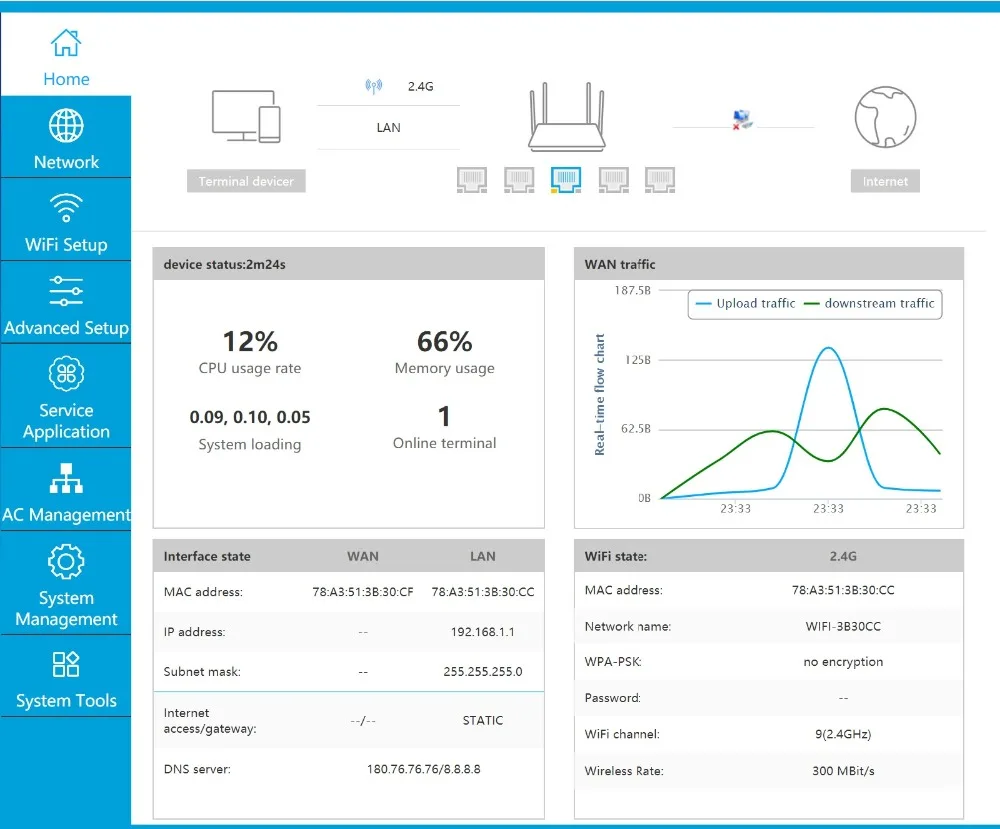

The mature stable and strong extensibility OpenWrt firmware And English firmware, provide intuitive easy to use interface Settings;Integration of a variety of network applications.
Customizability:
Lovers to meet “routing” and some “special” industry applications, CH-WR822 support “one-click web flash mode”, can easily implement flash.

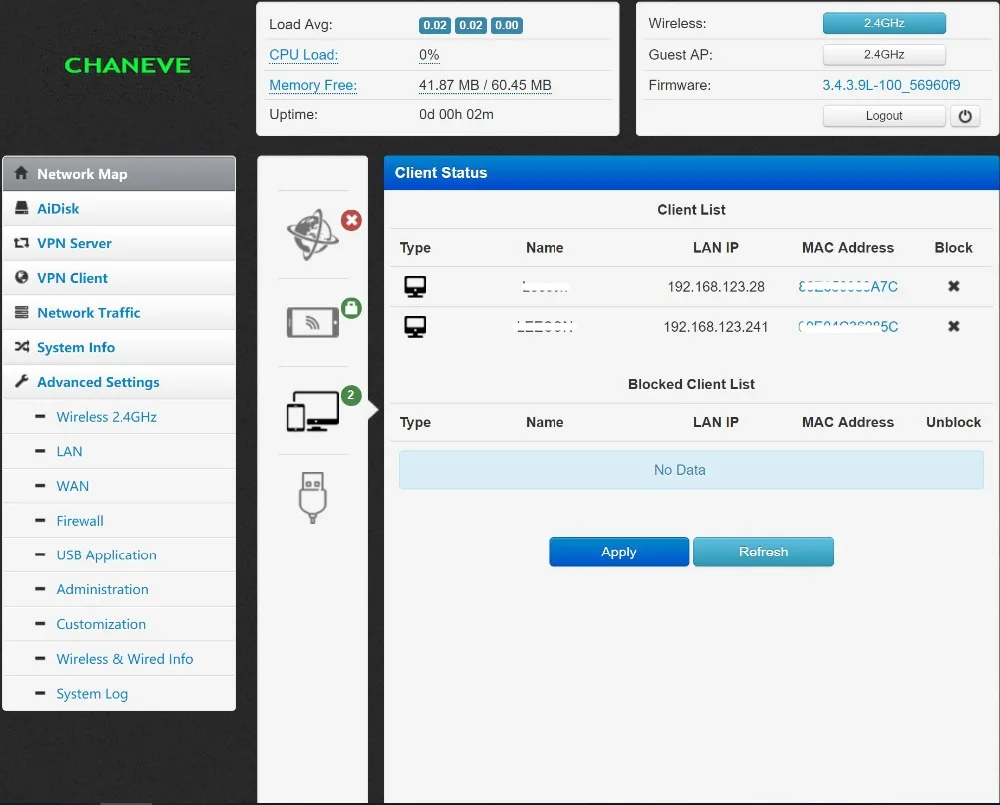

Padavan Firmware

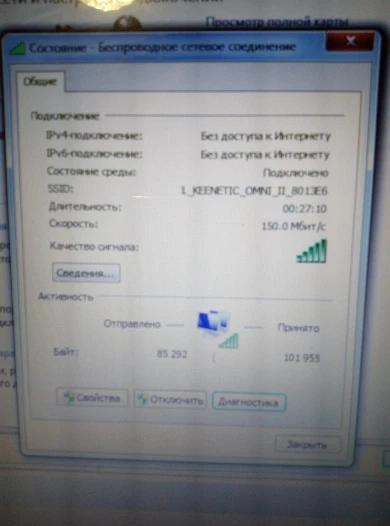

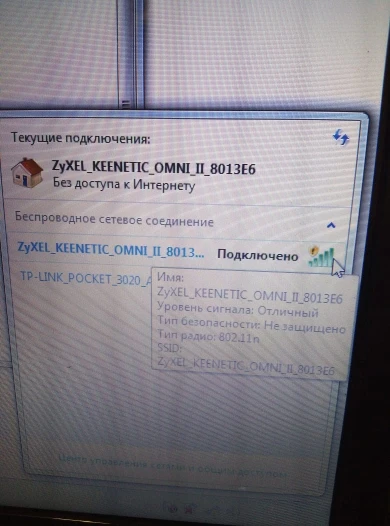

Omni II Firmware

For HUAWEI E3372/E8372H/ZTE MF823 USB 4G Modem

OS Firmware

ZBT Firmware

For 3G USB Modem
PRODUCT SPECIFICATION

Main CPU

MT7620N/600MHZ

RAM

DDR2 64MB

FLASH

SPI 8MB

Protocol

IEEE802.11n/802.11g/802.11b/802.3/802.3u

WiFi Rate

Max 300Mbps

Work

Frequency

2.4GHZ

RT Power

11N: 15dBmplusmn2dBm

11G: 15dBmplusmn2dBm

11B: 18dBmplusmn2dBm

Reception

Sensitivity

11N: -68dBm

11G: -70dBm

11B: -82dBm

Antenna

2*5dbi omnidirectional antenna, 2*auxiliary antenna

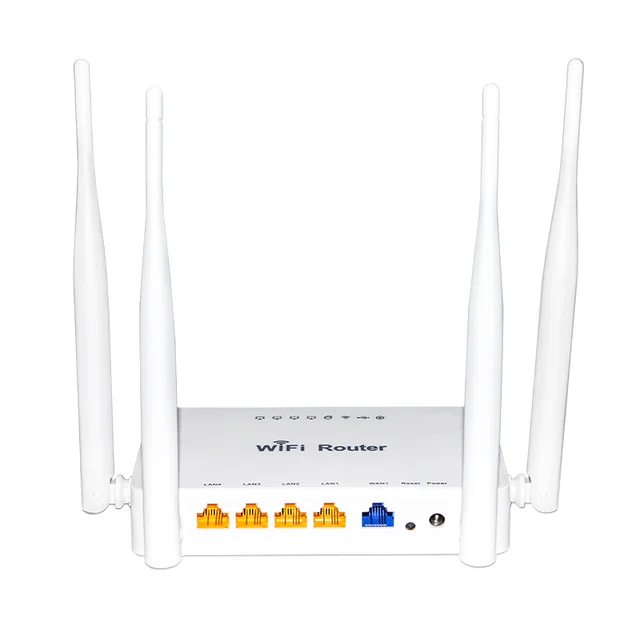

Interface

1* 10/100M Auto-MDI/MDIX WAN port,

4* 10/100M Auto-MDI/MDIX LAN port;

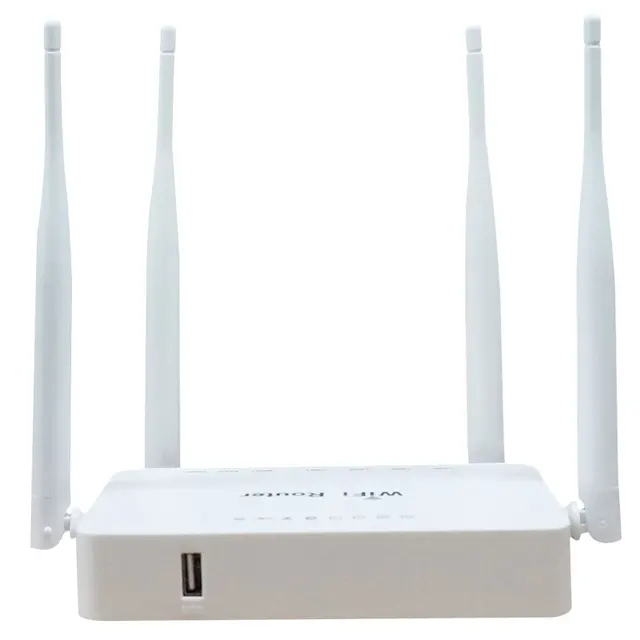

1*USB 2.0 Port

LED

power/USB/WLAN/WAN/LAN1/LNA2/LNA3/LNA4

Button

Reset

POE power supply

No

Max

consumption

< 9W

Demension(L*W*H)and color

Size:141*85*26MM

Color:Plastic white

Factory default setting

IP Address:192.168.18.1

Password:admin/admin

WAN Type

PPPoE、Dynamic IP、 Static IP

Work Mode

AP;ROUTER;

DHCP

Server; DHCP Client List;Address Reservation

Port

Forwarding

Port Triggering, DMZ

Support System

Original SDK,openwrt, eCos

Security Setting

Client Filter, MAC Address Filter, URL Filter, Remote WEB management

DDNS

Support

WEB Style

Change

Support

Static Router

Support

System Log

Support

Other

Function

Mac clone

NTP Synchronize

Web firmware upgrade

Work

Environments

Operating Temperature:0℃ ~ 40℃;

Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing

Storage Humidity:10%~90% non-condensing

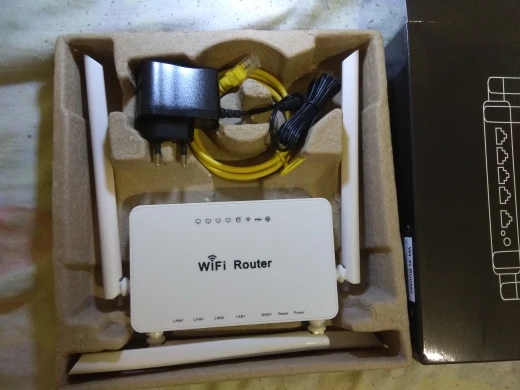

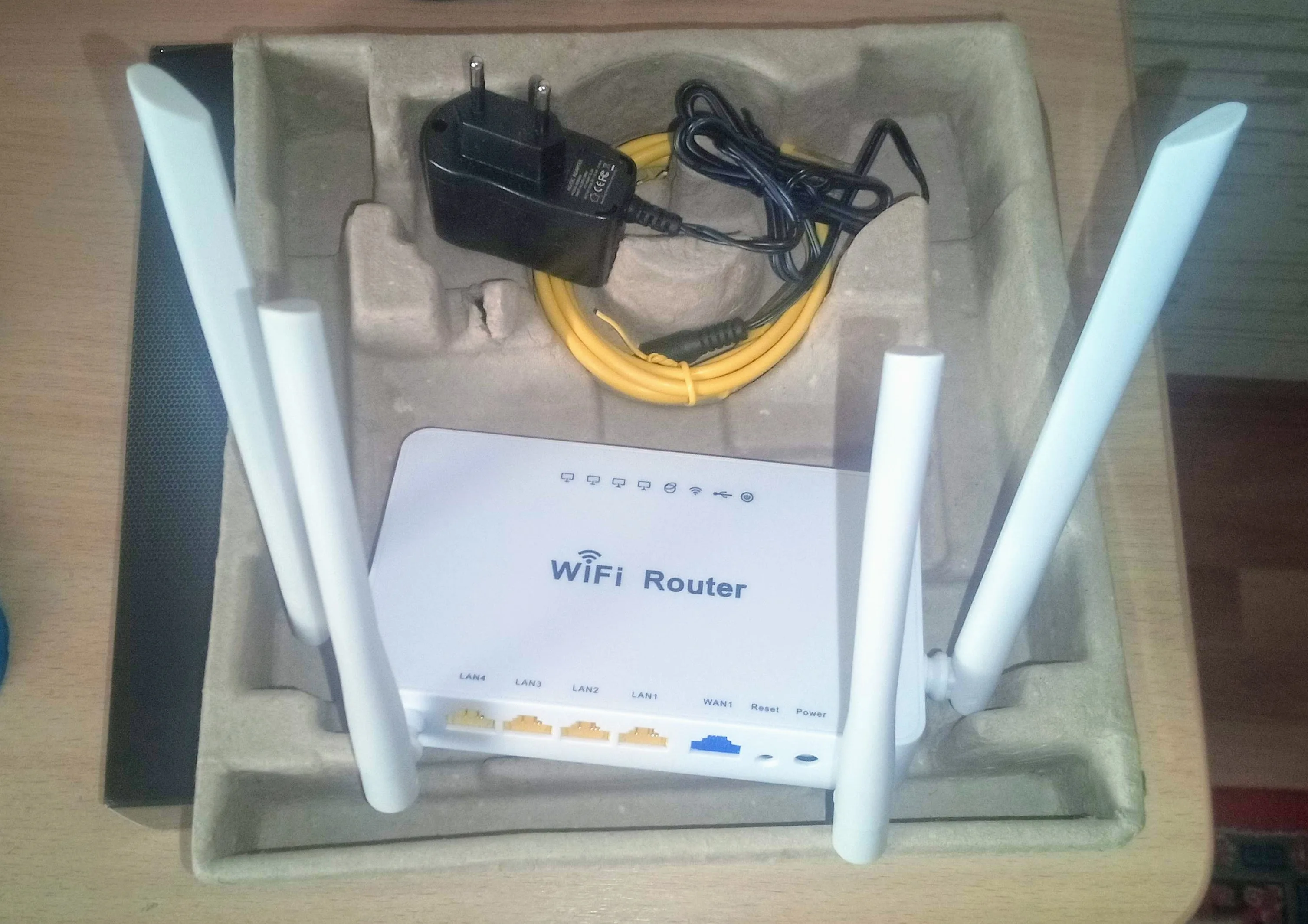

Accessories

Adapter*1PCS(National standard 9V/0.6A )

Cable*1PCS length 1M

Certificates

3C

Package

265*246*46MM

Reviews (17)

Average Star Rating:
4.9 out of 5 (17 Ratings)

Feedback Rating for This Product

Positive (100%) 5 Stars (15)
4 Stars (2)
Neutral (0%) 3 Stars (0)
Negative (0%) 2 Stars (0)
1 Stars (0)

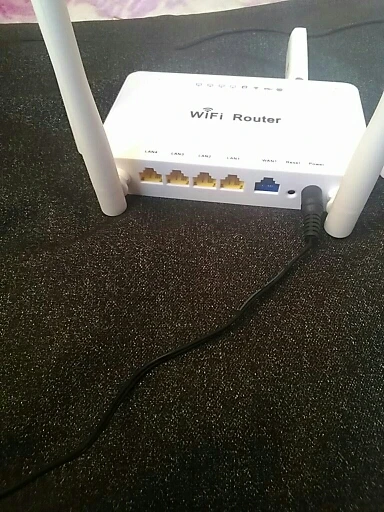

Buyer Real customer reviews
