Product Feature

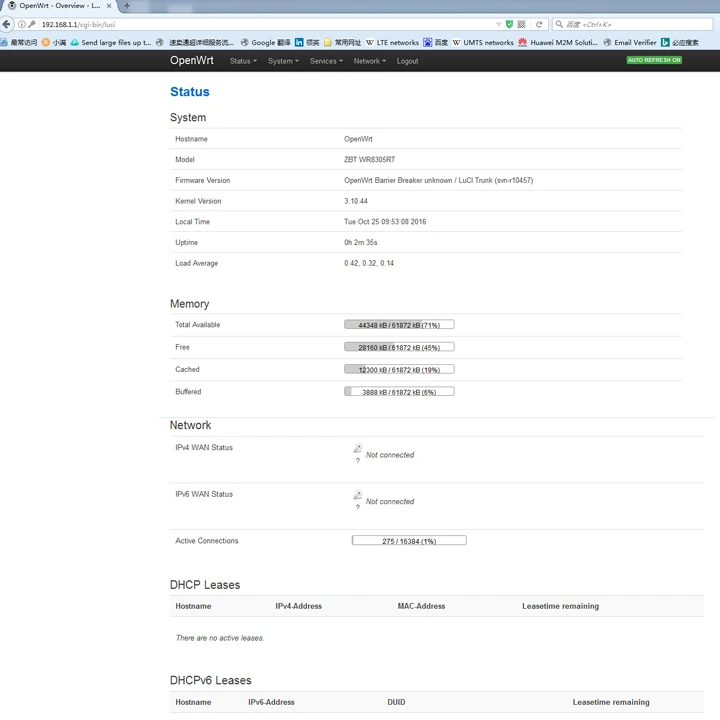

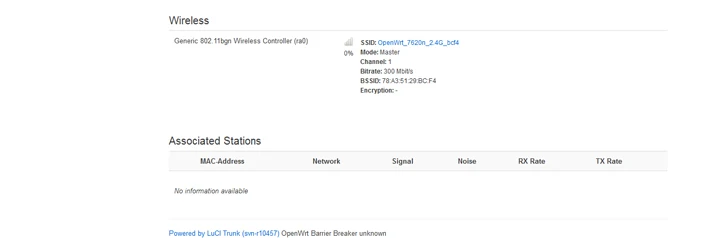

Firmware Information(openWRT)

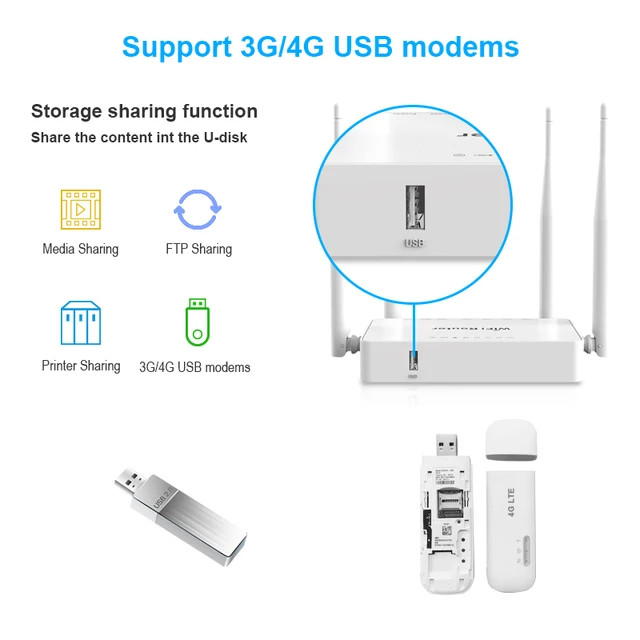

Or if you want to use below usb modem, please leave your message on you order,then i will upload ZBT firmware into the router.
PRODUCT SPECIFICATION

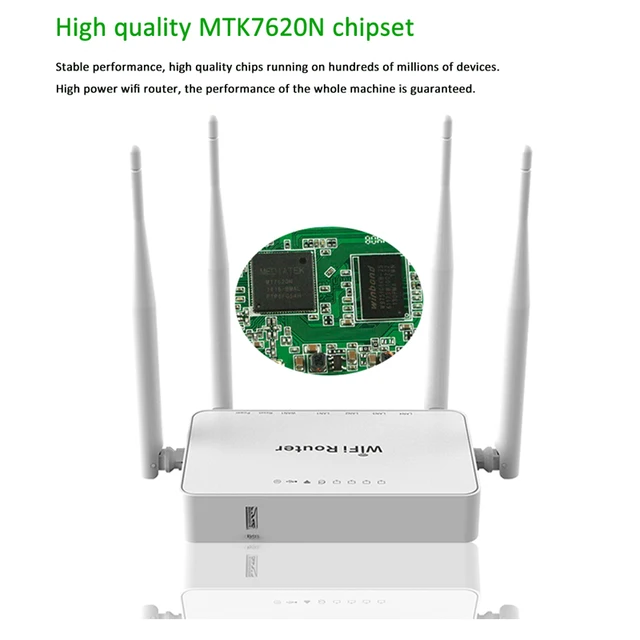

Main CPU |
MT7620N/600MHZ |
RAM |
DDR2 64MB |
FLASH |
SPI 8MB |
Protocol |
IEEE802.11n/802.11g/802.11b/802.3/802.3u |
WiFi Rate |
Max 300Mbps |
Work Frequency |
2.4GHZ |
RT Power |
11N: 15dBmplusmn2dBm
11G: 15dBmplusmn2dBm 11B: 18dBmplusmn2dBm |
Reception Sensitivity |
11N: -68dBm
11G: -70dBm 11B: -82dBm |
Antenna |

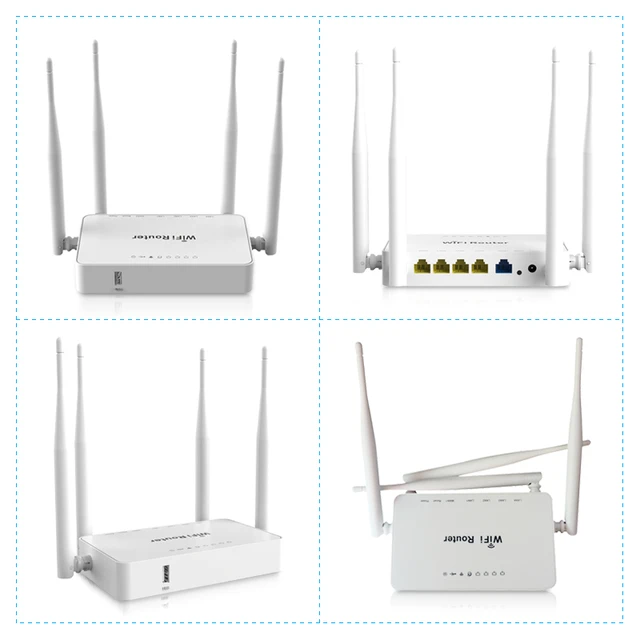

2*5dbi omnidirectional antenna, 2*auxiliary antenna |

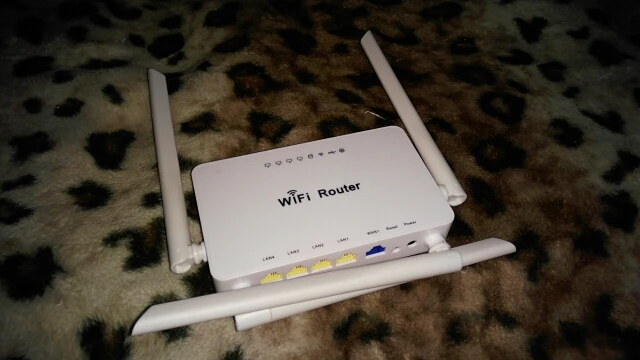

Interface |

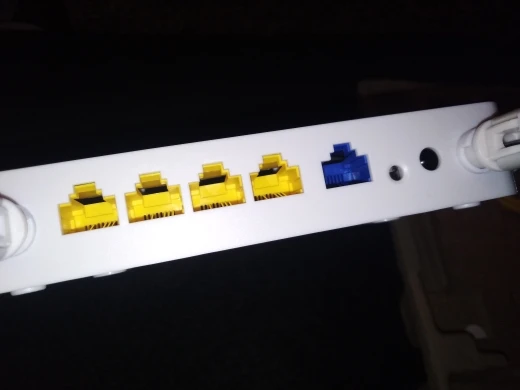

1* 10/100M Auto-MDI/MDIX WAN port,

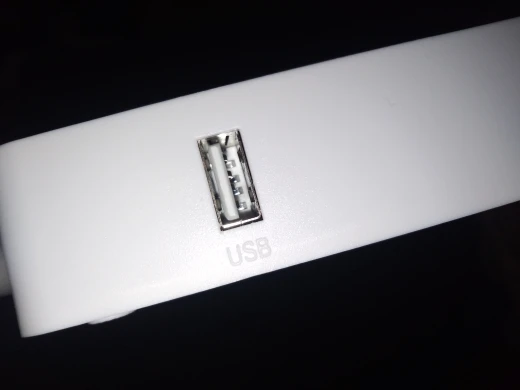

4* 10/100M Auto-MDI/MDIX LAN port; 1*USB 2.0 Port |
LED |
power/USB/WLAN/WAN/LAN1/LNA2/LNA3/LNA4 |
Button |
Reset |
POE power supply |
No |
Max consumption |
< 9W |
Demension(L*W*H)and color |
Size:141*85*26MM
Color:Plastic white |
Factory default setting |
IP Address:192.168.18.1
Password:admin/admin |
WAN Type |
PPPoE、Dynamic IP、 Static IP |
Work Mode |
AP;ROUTER; |
DHCP |
Server; DHCP Client List;Address Reservation |
Port Forwarding |
Port Triggering, DMZ |
Support System |
Original SDK,openwrt, eCos |
Security Setting |
Client Filter, MAC Address Filter, URL Filter, Remote WEB management |
DDNS |
Support |
WEB Style Change |
Support |
Static Router |
Support |
System Log |
Support |
Other Function |
Mac clone
NTP Synchronize Web firmware upgrade |
Work Environments |
Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃; Operating Humidity:10%~90% non-condensing Storage Humidity:10%~90% non-condensing |

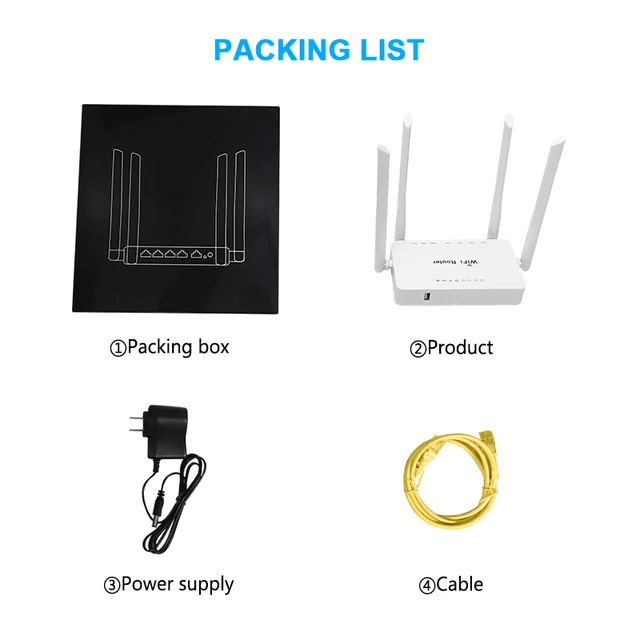

Accessories |

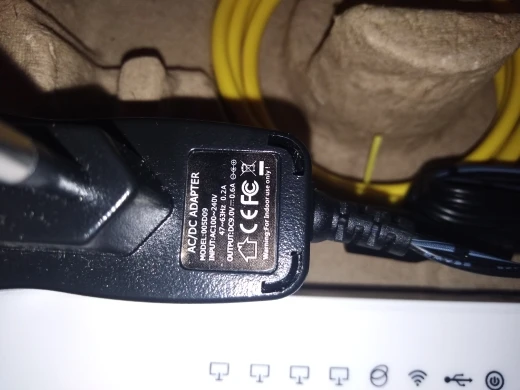

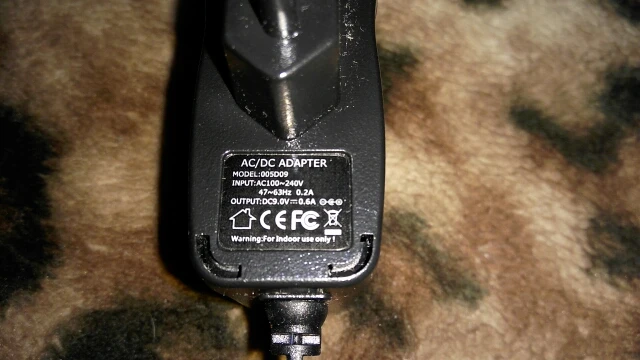

Adapter*1PCS(National standard 9V/0.6A )
Cable*1PCS length 1M |
Certificates |
3C |
Package |
265*246*46MM |
Buyer | Real customer reviews |
---|---|
Customer ![]() ![]() |
11 Apr 2020 23:03 Very good modems. I use for remote access to video surveillance. |
I***v ![]() ![]() |
7 Apr 2020 10:45 Not yet connected, so like a whole |
R***r ![]() ![]() |
7 Apr 2020 05:55 Router received thanks |
A***b ![]() ![]() |
7 Apr 2020 04:16 Pefrect router! Connected to 3G via huawei e173 - just in a few clicks. I seriously recommend this to buy! |
O***o ![]() ![]() |
6 Apr 2020 13:42 Works all fine MTS modem works well, connected without problems |
O***r ![]() ![]() |
6 Apr 2020 09:35 As in the description |
A***v ![]() ![]() |
5 Apr 2020 02:40 Excellent router, I order more than 1 time |
G***a ![]() ![]() |
5 Apr 2020 01:23 Prishol fast but without tracking? |
A***y ![]() ![]() |
3 Apr 2020 12:54 Good device. Works fine with firmware Keenetic Omni II 2.15.C.5.0-0. But before upgrade telnet to the device and put in factory lock mode. Then upgrade firmware to Keenetic Omni II 2.15.C.5.0-0 |
V***k ![]() ![]() |
3 Apr 2020 03:21 Earned immediately with the modem ZTE mf823d Tele 2. Wi-Fi works throughout the house, 150 m2, 2 floors. Thank you very much to the store for installing omni2. I recommend to everyone. |
S***f ![]() ![]() |
2 Apr 2020 22:45 The box came crumpled, but the router was not damaged, it works. |
A***o ![]() ![]() |
2 Apr 2020 11:04 Works as a kashnikov machine!!! Excellent store!!!! Thank you for the tips of users!!! Very helped!!!! God bless all health!!!! Happiness to all!!! |
A***o ![]() ![]() |
1 Apr 2020 23:18 Very good router. I take already 3 PCs. Work well. On the range on the open dream, 100 m catches the signal. |
D***o ![]() ![]() |

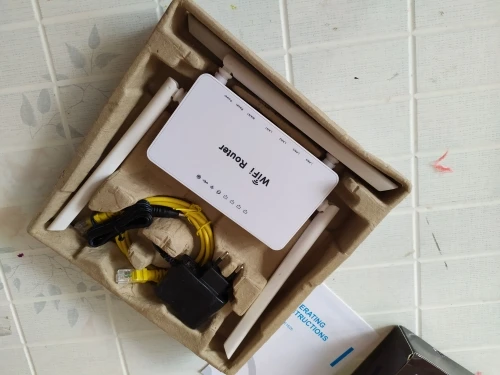

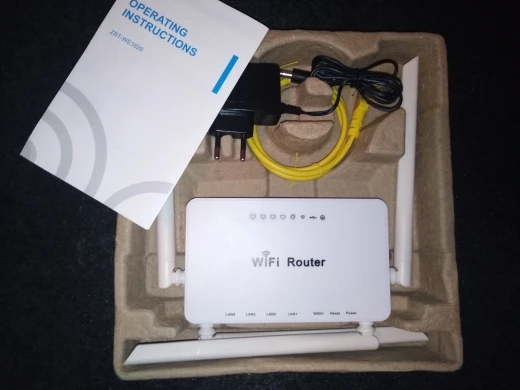

1 Apr 2020 05:57 I came in a month. Asked the store to install the firmware Omni II, and did. Packaging without reinforcement, the box is slightly wrinkled, but everything is whole. The router is good. Supports connecting yourself to other WiFi, distributing your own at the same time. Supports Huawei E303 and e153u-2 modems, others do not have. Both are well-developed. Power supply at 9 v. There were B buttons for quick activation of functions, as at keenetic Omni 4G, was wonderful. The plastic case is cheap, but says goodbye for its price. I recommend the seller. |
A***o ![]() ![]() |
31 Mar 2020 19:07 ok 5 |
V***v ![]() ![]() |
29 Mar 2020 07:50 Excellent router. Modem ZTE 100-3 immediately picked up, setting easy and fast |
A***v ![]() ![]() |
29 Mar 2020 07:33 Cool. |
Customer ![]() ![]() |
29 Mar 2020 00:01 The router is good. Delivered quickly. It's all funcycling. When working, it is heated weakly (3G modem is stronger). The store asked to send with omni2-it came. In general, a good device and a store. |
