Please read carefully before ordering
When your phone is connected to MIFI-XX. Then open the app “camhi”. Select “Add Camera.”
Then you can see your camera online. You can control the camera and watch videos from your phone.
|Basic Parameters Table|
|Signal System:||PAL(50HZ) / NTSC(60HZ) automatic identification|
|Infrared:||4pcs big Array IR Leds 32 mil , Infrared distance about 50M|
|Day& Night:||Dual IR-cut filter auto switch|
|Sensor Size:||Low Illumination 1/3″ SONY 323 CMOS 1080P+HI3516C||Low Illumination 1/3″ SONY 323 CMOS 1080P+HI3518E|
|Wireless Protocols:||802.11b/g ,150Mbps. 15-50m|
|Frequency range: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)|
|Transmission rate :Upload max:50Mbps, download max: 150Mbps|
|Security:WEP, WPA/WPA2, WPA-PSK/WPA2-PSK|
|Frequency range:B1(2100MHz), B8(900MHz)|
|Transmission rate:Upload max:5.76Mbps, download max: 21Mbps|
|PTZ:||Rotation angle:Horizon: 0 to 300°. Vertical: 0 to 60°|
|Lens:||2.7-13.5mm 5x auto zoom lens||4.7-47mm 10x auto zoom lens|
|Video Codec:||H.264 main profile and baseline|
|JPEG code rate:||(640×352), (320×176) can be set (for mobile monitoring)|
|Frame Rate:||1-25fps(PAL), 1-30fps(NTSC)||1-20fps(PAL), 1-20fps(NTSC)|
|Image Settings:||Brightness,Saturation,Contrast,Sharpness,Exposure,Gamma,Distortion,Flip , Mirror, WDR|
|OSD Settings:||Time Stamp,Time show,Camera name,Name show|
|Privacy Mask:||4 Configurable regions|
|Network Protocol:||TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, ect.|
|Access Protocol:||ONVIF , i13, P2|
|Function Support||Support P2P|
|Support motion detection alarm (4 areas can be adjusted, the sensitivity can be adjusted)|
|Support alarm picture to send E-Mail|
|Support Alarm picture or video upload FTP server|
|Support timed capture pictures to FTP server|
|Support Micro SD card function, maximum support 128G Micro SD card|
|Support for static IP, also supports dynamic IP (DHCP)|
|Support IE, Google, Firefox browser,Recommend to use IE browser.|
|Up to 12 users can browse simultaneously(each stream supports 4 users)|

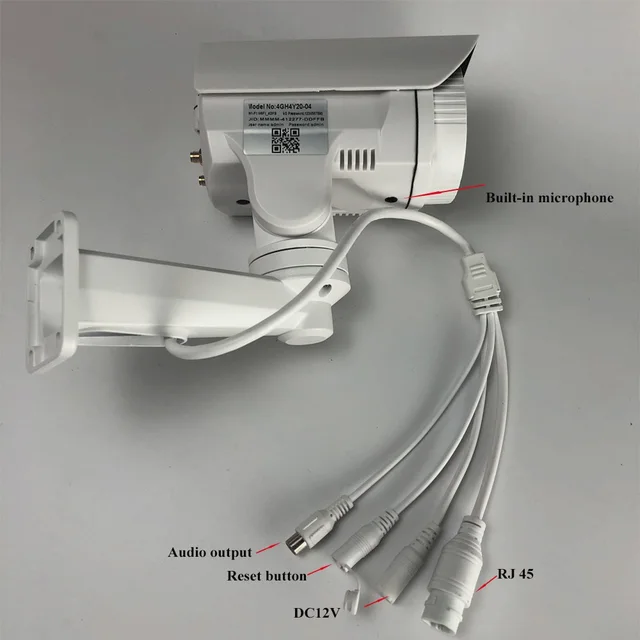

|Network:||1 * RJ45 10Base-T/100Base-TX ethernet interface|
|Power:||1 * Ø5.5 RCA interface|
|Audio (Optional):||Audio Codec: G.726/G.711|
|Audio input : Built-in microphone|
|Audio output : 1 RCA output, support for connecting headphones or amplifier ( tail line support)|
|Anti-thunder Level:||Standard IEC61000-4-5|
|Operating Conditions:||-20 °C ~ 55 °C Humidity 95% or less (non-condensing)|
|Power Supply:||DC12V 1-2A|
|Power Consumption:||3W(daytime), 9W(night)|
|Applicable:||Indoor use / Outdoor use(Waterproof IP66)|
|Step 1: find the device IP and modify.|
|Step 2:Browser view and setting|
|Step 3 : P2P PC client remote access|
|NOTE :How to connect the camera to your WiFi or 4G signal again after you use the reset button.|
|1-2:Go to your phone “settings”–WLAN,Search WiFi signal.
3-3:Choose the wifi hotspot”IPCAM-xxxxxx”,”-xxxxxx”is the MAC address, erery camera may not be the same.
4-5:Enter the camera WiFi hotspot password:01234567,You will see that your phone is directly connected to this camera.
6-8:Open the App“Camhi”.Add Camera.Select”Search Camera From LAN”.
9-10:You will find the camera’s UID,click it ,usename and password:admin.add camera.
11-12:Click”Settings button”,choose “WI-FI Setting”.
13-14:Choose your wifi ,Enter your wifi password.Complete the setup. or choose 4G signal MIFI-XX, connect camera to 4G signal.
